MicroVAX II

This document is a comprehensive collection of manuals for the MicroVAX II 630QY and 630QZ systems, published by Digital Equipment Corporation. It provides detailed information covering all aspects of the system, from initial setup and operation to troubleshooting, technical specifications, and available support services.

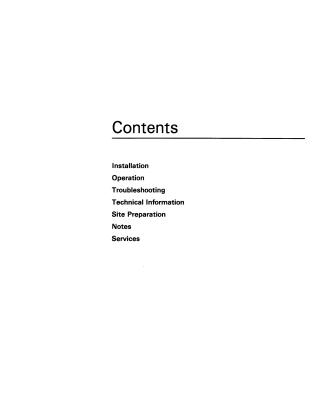

The document is structured into several key sections (likely separate manuals bound together):

1. Installation (Order No. EK-002AB-IG-002): This section guides users through the physical setup of the MicroVAX II system. It covers verifying site preparation, checking shipment contents, physically placing the system (pedestal mount, tabletop conversion, or rack mount), installing and connecting console terminals and other peripheral devices (printers, modems, Ethernet), setting system controls, connecting power, and performing initial power-on and language selection.

2. Operation (Order No. EK-003AB-OM-002): This part details how to use the MicroVAX II system after installation. It describes the system overview (front and rear panels, controls, base components, optional components), explains various switch settings for normal and special operations, and provides procedures for turning on, booting, halting, and restarting the system. It also includes extensive instructions for operating various mass storage devices (fixed-disk, diskette drives like RX50/RX33, and tape drives like TK50/TK70) and connecting to communication options (asynchronous, synchronous, and network controllers) and printers.

3. Troubleshooting (Order No. EK-004AB-SG-002): This section focuses on diagnosing and resolving common issues. It provides tables outlining problems, possible causes, and corrective actions for both power-on sequences and normal system operation (including fixed disk, diskette, and tape drive problems). It also offers a detailed guide on running the MicroVAX Diagnostic Monitor (MDM) software to identify and isolate system faults.

4. Technical Information (Order No. EK-005AB-IS-002): This manual offers in-depth technical specifications for the MicroVAX II 630QY and 630QZ systems. It covers base system specifications (KA630 CPU firmware, panel operation, processor specs, memory options), and detailed specifications for a wide array of optional components, including mass storage devices and their controllers, various communication controllers (asynchronous, synchronous, network), real-time controllers, and different types of printers and their interfaces. It also provides guidance on determining system expansion capacity based on power requirements.

5. Site Preparation Guide (Order No. EK-067AB-PG-002): This guide outlines the necessary physical, environmental, and electrical requirements for installing MicroVAX systems. It includes system dimensions for various enclosures (BA23, BA123, BA213, H9642, H9644), acoustic emission levels, operating environment guidelines (temperature, humidity, static electricity), and detailed electrical specifications and power cord information for different regions and cabinet types.

6. Services (Order No. EK-026AA-SV-001): This section describes the range of hardware, software, and educational services provided by Digital Equipment Corporation for MicroVAX systems. It details "Optimum Service" packages, various field service agreements (DECservice, Basic Service), software product services (DECsupport, Basic Service for Software, Self-Maintenance Service), and educational offerings (seminars, instructor-led, self-paced, computer-based instruction, and DIGITAL Press).

In essence, the document serves as a complete resource for deploying, operating, maintaining, and expanding the MicroVAX II 630QY and 630QZ computer systems, along with information on available professional support.
