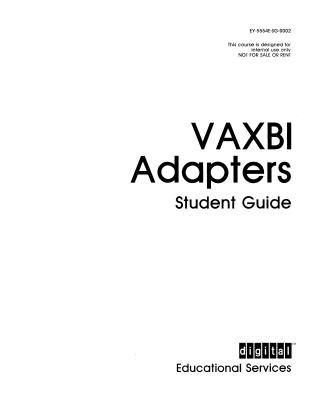

VAXBI Adapters Student Guide

This "VAXBI Adapters Student Guide" is an internal training and reference manual from Digital Equipment Corporation (1987) for Field Service engineers. It serves as a comprehensive information database on various VAXBI adapters, providing essential details for installation, operation, and troubleshooting.

The guide categorizes adapters into:

• Window adapters: Such as the DWBUA, which facilitates data transfer between the VAXBI bus and the UNIBUS.
• Programmed I/O (PIO) adapters: Like the DMB32, an intelligent multiplexer for eight asynchronous and one synchronous serial data channels, plus a line printer interface.
• Port adapters: Including the DEBNT (Ethernet/tape controller), CIBCI (Computer Interconnect for VAXclusters), CIBCA (Computer Interconnect for VAXclusters), and KDB50 (intelligent disk controller for DSA disk drives).

For each adapter, the document provides:

• Introduction: Covering functional descriptions, block diagrams, data transfer mechanisms, and key features.
• Registers: Explaining the VAXBI address space and specific registers for control and status.
• Installation: Step-by-step procedures for mounting modules, connecting cables, and configuring the system, along with critical safety warnings.
• Troubleshooting: Guidance on using self-tests and diagnostic programs (standalone and online), interpreting error codes, identifying Field Replaceable Units (FRUs), and utilizing detailed flowcharts.
• Related Documentation: A list of external technical manuals for further reference.

The guide is designed as a customizable information source for field service personnel to easily access and relate to official documentation, focusing on practical application rather than structured exercises.
