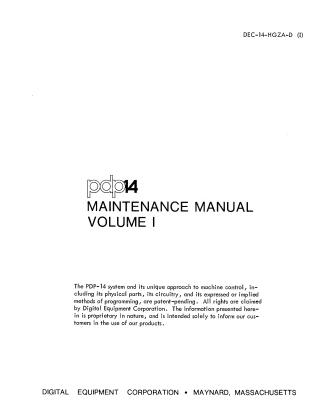

PDP-14 Maintenance Manual Volume I

This document is a maintenance manual for the PDP-14 System, a computer designed to replace industrial relay control systems using AC power. Its core function involves executing a control program stored in Read Only Memory (ROM) to test inputs (e.g., limit switches, pushbuttons) and existing outputs, comparing these against programmed logic to control new outputs (e.g., solenoids, motor contactors). The system supports up to 256 inputs and 255 controllable output functions, including specialized capabilities like time delays, retentive memories, and storage flip-flops located in accessory and storage boxes.

The manual outlines two primary levels of maintenance:

1. On-Line Maintenance (Chapter 2): This level focuses on fault isolation and repair without disconnecting the PDP-14 from the machine or process system. It emphasizes using neon indicator lamps on input/output boxes to diagnose whether a malfunction is external to the PDP-14 or within its components. For internal PDP-14 faults, step-by-step module substitution procedures are provided, ideally utilizing an external test computer (such as a PDP-8/I, PDP-8/L, or PDP-12) and specific diagnostic programs. A method for fault isolation via module substitution without a test computer is also described.
2. Off-Line Maintenance (Chapter 4): This advanced level details techniques for repairing defective modules that have been removed from the system. It requires specialized electronic test equipment (e.g., oscilloscopes, module extenders), a test computer, and a thorough understanding of PDP-14 circuitry (as detailed in Chapter 3 and supplemented by engineering drawings in Volume II of the manual).

Additionally, the document includes a comprehensive Theory of Operation (Chapter 3), which describes the PDP-14's functional architecture, its internal instruction set (including Test, Decision-Making, and Control instructions), cycle control, data transfer mechanisms, and detailed circuit descriptions for key components like the "test flop," manual controls, ROM circuits, and various input/output/storage/accessory box interfaces. It also elaborates on the PDP-14's ability to interface with external computers for monitoring, control, and program generation, allowing operation in both internal (ROM-driven) and external (computer-controlled) modes. Necessary test equipment and recommended spare modules are also listed.
