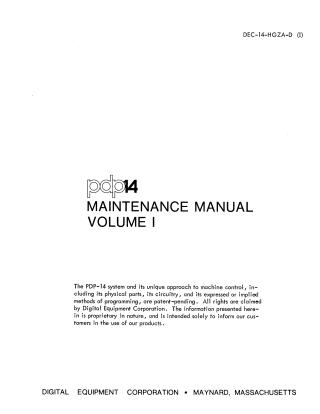

PDP-14 Maintenance Manual Volume I

This document, the PDP-14 Maintenance Manual Volume I, provides comprehensive instructions for the maintenance and troubleshooting of the PDP-14 System, designed to replace relay control systems in industrial applications. The manual outlines two primary levels of maintenance: on-line and off-line.

On-Line Maintenance (Chapter 2) focuses on fault isolation and repair without disconnecting the PDP-14 from the machine system. It guides users to first identify if a malfunction is within the machine/process system or the PDP-14 itself, often using the neon lamps on the PDP-14's input/output boxes. If the fault is within the PDP-14, step-by-step procedures, utilizing an external test computer (like a PDP-8/I, PDP-8/L, or PDP-12), help isolate the defective module through substitution. Specific procedures are detailed for checking the control unit, storage box, Read Only Memory (ROM), output box, input box, and accessory box. A method for fault isolation without a test computer is also provided through simple module substitution based on observed symptoms.

Off-Line Maintenance (Chapter 4) delves into more detailed fault isolation and repair techniques for modules removed from the PDP-14. It utilizes standard digital test equipment, the same test computer and programs as on-line maintenance, and an oscilloscope to pinpoint issues down to individual components. This section requires a thorough understanding of the PDP-14's operation and references engineering drawings found in Volume II of the manual. It also includes precautions and techniques for repairing electronic components like semiconductors.

Theory of Operation (Chapter 3) explains the fundamental workings of the PDP-14 Controller. The system operates by continuously executing a control program stored in ROM, testing the status of machine inputs and its own outputs against program conditions to make decisions and control outputs. It covers the instruction set (Class I for accessing terminals, Class II for internal operations and program jumps), key logic hardware like the "test flop" and conditional jump circuits, and the timing cycles (Fetch and Execute states). The document also describes the architecture of the ROM, input/output boxes, storage boxes (containing flip-flops), and accessory boxes (which can house time delays and retentive memories/latching relays). The PDP-14 can operate in "internal mode" (ROM controlled) or "external mode" (controlled by an external computer via a dedicated interface).
