Pdp8a Cpu

This document is a technical schematic set for the PDP-8A CPU, containing detailed circuit diagrams and a comprehensive parts list. It includes:

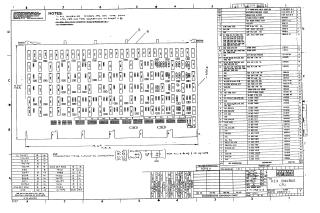

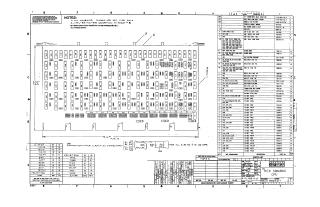

• Engineering Schematics: Ten pages of detailed logic diagrams showing the interconnections of integrated circuits, multiplexers, adders, flip-flops, and bus structures that compose the PDP-8A processor architecture.
• Parts List: A detailed bill of materials specifying the electrical components required for assembly, including integrated circuits (ICs), resistors, capacitors, and diodes, mapped to their respective coordinate locations on the circuit board.
• Assembly Information: Notes regarding diode types and etch cut specifications, as well as a switch selection chart for configuring "field" and auto-restart locations.
• Component Substitution: A table outlining authorized part substitutions for maintenance and manufacturing purposes.

Overall, this document serves as the primary technical reference for the manufacturing, assembly, and maintenance of the M8315-0-1 circuit board.
