M182 Parity Circuit

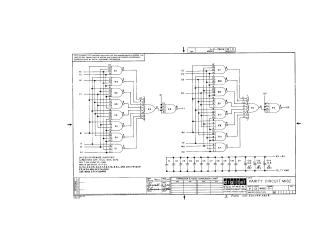

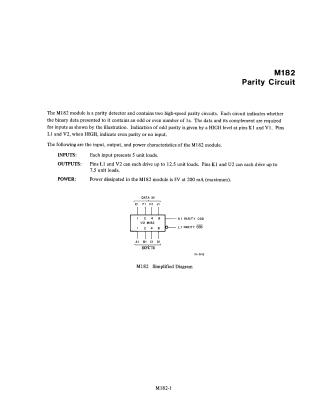

Summary: The M182 module is a parity detector equipped with two high-speed circuits designed to determine if binary data contains an odd or even number of 1s. To function, the module requires both the data and its complement as inputs. Output pins K1 and V1 signal odd parity with a HIGH level, while pins L1 and V2 signal even parity or no input with a HIGH level. The document also details specific electrical requirements, noting that each input requires 5 unit loads, output drive capabilities range between 7.5 and 12.5 unit loads, and the module dissipates a maximum of 5V at 200 mA.
