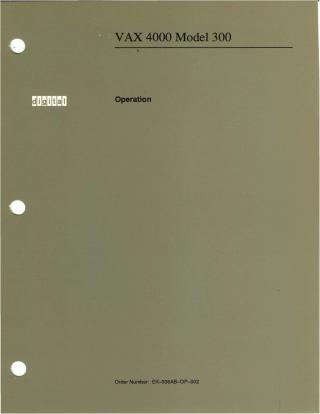

VAX 4000 Model 300 Operation

This document is an operation manual for the Digital Equipment Corporation VAX 4000 Model 300 and VAXserver 4000 Model 300 systems, published in 1990. It details the setup, operation, and maintenance of these computer systems, which run on VMS or VAXELN operating systems and can function as network nodes.

The manual provides:

• System Overview: A description of the system's physical architecture, including the BA440 enclosure, its core components (CPU, memory, power supply, fans), and integrated system controls (console module, system control panel). It also explains the functional aspects of base system components and various optional components like mass storage devices, communication controllers, real-time controllers, and printer interfaces, including details on dual-host configurations.
• System Operation: Instructions for basic functions such as powering the system on and off, configuring switch settings for normal and special operations, booting (both automatically and from console mode), halting, restarting, and recovering from overheating conditions.
• Operating System Options: Comprehensive guidance on using optional hardware components, with a strong focus on mass storage devices (RF-series Integrated Storage Assemblies, TK70 and TLZ04 tape drives, optical and digital disk subsystems) and communication controllers (asynchronous, synchronous, network). This includes proper handling, write-protection, and cleaning procedures for storage media.
• Appendices: Information on programming parameters for RF-series ISAs, detailed procedures for creating and restoring backup files using standalone BACKUP, and a guide for removing unwanted VMS files using the VMSTAILOR utility. A glossary of key terms is also included.
