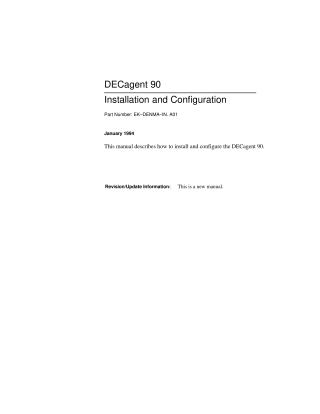

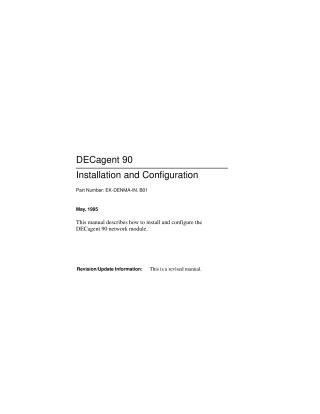

DECagent 90 Installation and Configuration

This document, "DECagent 90 Installation and Configuration," serves as a guide for installing and configuring the DECagent 90 network module.

The DECagent 90 is an SNMP (Simple Network Management Protocol) proxy agent designed for Digital's WorkGroup family of products. It provides SNMP proxy support for various DECbridge, DECserver, and DECrepeater modules, automatically discovering most devices within its community (with exceptions requiring manual addition). Management of the DECagent 90 and its managed devices is primarily achieved using SNMP and HUBwatch software.

Key features of the DECagent 90 include:

• Hot-swap capability
• Support for Serial Line Internet Protocol (SLIP) and Trivial File Transfer Protocol (TFTP) for firmware upgrades
• Direct SNMP management and storage of MIB settings in battery-backed RAM
• Out-of-band management options and error-logging
• Capability to manage up to 16 hub communities and 64 network modules
• Deployment as a standalone unit or installed within a DEChub 90 or DEChub 900 MultiSwitch.

The manual provides detailed information across several sections:

• Installation: Instructions for setting up the DECagent 90 as a standalone unit, and for installing it into a DEChub 90, highlighting its hot-swap feature.
• Front and Back Panels: Descriptions of the physical components, including LEDs and connectors.
• Module Removal: Steps for safely removing the module from a DEChub 90.
• Configuration: Extensive guidance on using the setup port (DB25) to access the Agent Installation Menu. This section details how to configure parameters such as IP address/gateway, read/write community strings, trap addresses, enable/disable SNMP sets, perform downline loads, manage backplane communication, switch to SLIP mode, view community and module status, and connect via MOP (Management Operating Protocol).
• LED Summary and Problem Solving: Tables explaining the meaning of the module's LEDs and providing troubleshooting steps based on LED behavior.
• Connector Pin Assignments: Detailed pinout diagrams for various connectors and cables.
• Accessing MIBs and RFCs: Methods to obtain Management Information Bases and Request For Comments via electronic mail, ftpmail, and anonymous FTP.
• Product Specifications: Technical details including physical dimensions, operating environment, and acoustical specifications.
• Associated Documents: A list of related manuals for further reference.
