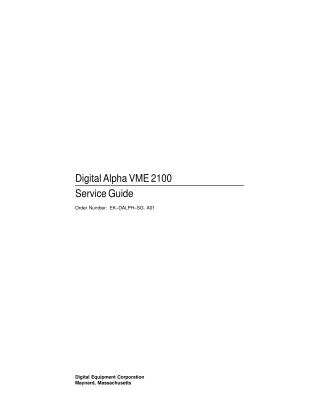

Digital Alpha VME 2100 Service Guide

This "Digital Alpha VME 2100 Service Guide" is a comprehensive manual for servicing and maintaining Digital Alpha VME 2100 systems, specifically those using the BA742 rackmount enclosure (both drawer-mount and vertical-mount versions).

The guide outlines a structured troubleshooting strategy, classifying problems into categories like power, console access, boot failures, and operating system errors. It details various diagnostic tools and utilities, including:

• ROM-Based Diagnostics (RBDs): Embedded diagnostics run automatically at power-up or invoked via console commands.
• Firmware Console Commands: Used for setting environment variables, device parameters, and running diagnostics.
• Operating System Exercisers (DEC VET): Software-based tools for maintenance testing of hardware and the operating system.
• Error Handling/Logging: Analysis of error logs and crash dumps for fault isolation.

Key sections cover:

• Power-Up Diagnostics and Displays: Instructions on interpreting messages and displays from the Operator Control Panel (OCP) and console screen during system self-tests, as well as troubleshooting specific power-up issues related to mass storage, PCI, and VME buses, and using the fail-safe loader.
• Running System Diagnostics: Detailed explanations of console commands (test, sys_exer, show fru, show error, memexer, nettest, etc.) for active system diagnosis, component testing, and error reporting.
• Error Log Analysis: Guidance on how to interpret system error logs generated by Digital UNIX and OpenVMS (using tools like DECevent, ERF, and uerf) to identify the root cause of hardware faults and pinpoint failing Field Replaceable Units (FRUs).
• System Configuration and Setup: Information on verifying hardware configurations (CPU, memory, I/O, PCI, VME, SCSI buses) using SRM console commands, and details on configuring environment variables and installing various system components.
• FRU Removal and Replacement: Step-by-step procedures for safely accessing, removing, and replacing a wide range of field-replaceable units within the BA742 enclosure, including cables, CPU modules, fans, I/O modules, motherboards, power supplies, and storage drives.

The document is intended for Digital Equipment Corporation service personnel and qualified self-maintenance customers, providing essential information for system diagnosis, configuration, and hardware maintenance.
