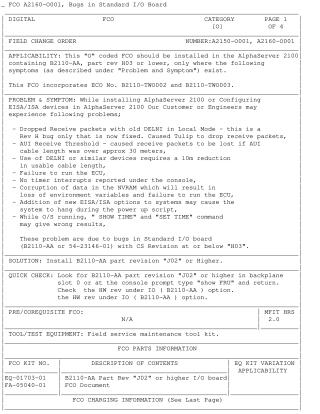

FCO A2150-0001, Bugs in Standard I/O Board

This Field Change Order (FCO A2150-0001/A2160-0001) addresses critical bugs found in the Standard I/O Board (B2110-AA or 54-23146-01, revision H03 or lower) of AlphaServer 2100 systems. The identified problems include dropped network packets, AUI cable length limitations, failure to run the ECU, missing timer interrupts, NVRAM data corruption leading to loss of environment variables, system hangs during EISA/ISA device configuration, and incorrect "SHOW TIME" and "SET TIME" command results.

The solution is to replace the problematic I/O board with a B2110-AA part revision "J02" or higher. The document provides a detailed installation procedure, which involves shutting down the operating system, halting the system, setting up antistatic precautions, noting console configurations, powering down the system, physically replacing the I/O board (referencing a separate service guide), powering up, verifying the new module's firmware and ethernet address, performing system diagnostics, running the "ECU" utility, and rebooting. The necessary replacement part is included in FCO Kit EQ-01703-01.
