VR201 Field Maintenance Print Set

This document is a Field Maintenance Print Set for the VR201 Monitor, published by Digital Equipment Corporation in 1982. It serves as a comprehensive guide for maintaining and assembling the monitor, covering unit variations VR201-A, VR201-B, and VR201-C.

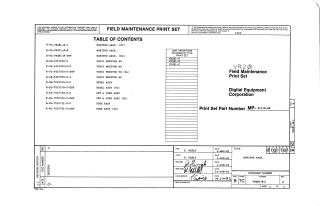

The document includes a Table of Contents listing various assemblies such as the Monitor Assy, Bezel Assy, CRT & Yoke Assy, Yoke Assy, and VR201 Monitor Boards. Subsequent pages feature detailed assembly drawings, schematics (including a component-side view of a circuit board), and extensive parts lists. These parts lists specify components by part number, description, and quantity for each monitor variation, encompassing a wide range of electronic parts like capacitors, resistors, diodes, transistors, integrated circuits, and transformers, as well as mechanical parts such as washers, screws, bezels, and cables. The document also provides revision histories for various components and includes rework instructions, assembly notes, and caution advisories.
