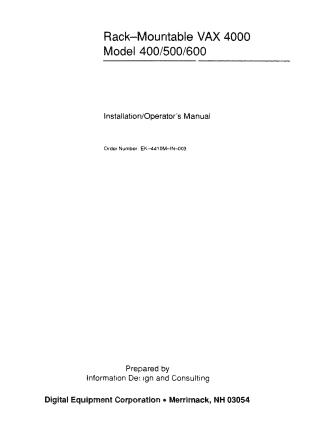

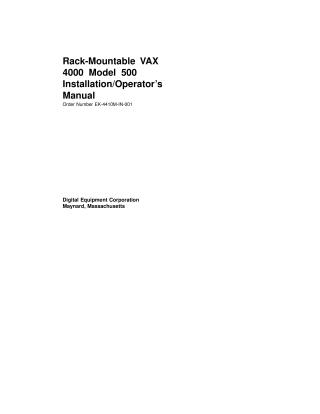

Rack-Mountable VAX 4000 Model 500 Inst./Operator's Manual

This document is the Installation/Operator's Manual for the Rack-Mountable VAX 4000 Model 500 Computer System, published by Digital Equipment Corporation. It provides comprehensive information for Digital Customer Service and customer maintenance personnel.

The manual is divided into three main sections:

1. System Overview (Chapter 1): This chapter provides a physical description of the VAX 4000 Model 500, which is housed in a BA441 slide-mounted enclosure designed for standard 19-inch racks. It details the major units, including:

   • Front Assemblies: Mass storage shelf (for ISEs and tape drives), System Control Panel (with DC OK, over-temperature indicators, and Halt/Restart/Run buttons), and the main ON/OFF switch.
   • Card Cage: Contains memory modules, the CPU, Q-bus option modules, and a Console Bulkhead Assembly (with power-up mode, baud rate, and break enable/disable switches, bus node ID plugs, DSSI, SCSI, and Ethernet connectors).
   • Power Supply: Monitors internal temperature and fan speed, shutting down the system as a precautionary measure if issues are detected. It also describes various power bus connectors.
   • Fans: Explains their function in air circulation and the system's response to fan failures.

2. Installation (Chapter 2): This chapter outlines the step-by-step procedures for installing the system. Key procedures include:

   • Verifying site preparation, gathering necessary tools, and checking the shipment.
   • Physically installing the equipment slides into the cabinet and mounting the VAX 4000 chassis onto these slides (noting the system's 53.5 kg/118 lb weight).
   • Installing cable management and cable tie brackets.
   • Setting system controls on the System Control Panel and Console Bulkhead Assembly, including critical warnings about powering off before making Ethernet connections and the importance of Digital-supplied slot covers for cooling, EMI/RFI compliance, and protection.
   • Connecting various peripheral devices: terminals, serial and parallel printers, synchronous and asynchronous modems, Ethernet networks (both ThinWire and standard, via console bulkhead or DESQA module), embedded tape drives, and R400X expanders.
   • Detailed instructions for cabling the system, including Q-bus, DSSI, KZQSA external, power control bus, ground, and system power cables.
   • The final steps involve turning on the system, selecting a language via the console terminal, and running power-up self-tests.

3. Maintenance (Chapter 3): This chapter covers troubleshooting and specific removal/replacement procedures for Field Replaceable Units (FRUs) unique to the Rack-Mountable VAX 4000 Model 500. A critical safety warning is provided to always turn off the main power switch and disconnect the power cord from the wall receptacle before performing any maintenance. Examples of FRUs covered include the ON/OFF Switch Assembly, Storage Backplane Assembly, Power Card Assembly, Fans, and Equipment Slides.
