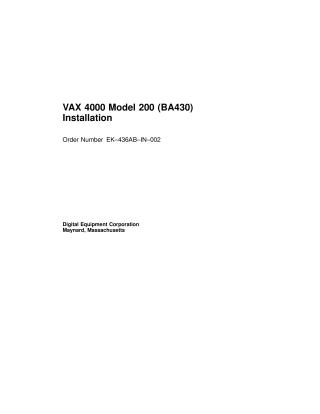

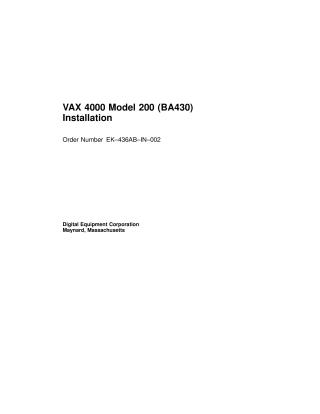

VAX 4000 Model 200 (BA430) Installation Guide

This document is an installation guide for the VAX 4000 Model 200 (BA430) computer system.

It provides comprehensive, step-by-step instructions for:

1. Physical Setup: Verifying site preparation, checking the shipment, positioning the system, opening its doors, and connecting the console terminal.
2. System Controls: Setting various system controls on the power supply, system control panel, integrated storage elements, CPU cover panel, and tape drives.
3. Device Connectivity: Detailed procedures for connecting a wide range of external devices, including:
   • Terminals and serial/parallel printers.
   • Synchronous and asynchronous modems, including internal modems to telephone lines.
   • Ethernet network connections (both ThinWire and standard) at the CPU cover panel and DESQA module.
4. Expander Connections (If Required): Instructions for connecting expander-specific cables such as Q-bus, DSSI, KZQSA external, power control bus, and ground cables, with specific considerations for dual-host systems.
5. Initial Power-Up: Connecting the system power cable, turning on the system, and selecting the console language.
6. Software Configuration: Appendix A outlines how to start and modify the VMS factory-installed software (FIS) for various configurations, including standalone systems, simple VAXcluster networks, and complex network/dual-host systems, covering initial password and cluster information setup.

The manual also includes important safety warnings, a list of necessary tools, and references to other documentation for further details on operation, troubleshooting, and VMS configuration.
