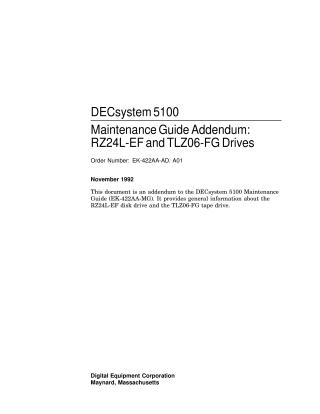

DECsystem 5100 Maint Guide Addendum: RZ24L-EF & TLZ06-FG Drives

This document is an addendum to the DECsystem 5100 Maintenance Guide (EK-422AA-MG), providing general information about two specific hardware components: the RZ24L-EF disk drive and the TLZ06-FG cartridge tape drive.

Intended for Digital Services personnel and self-maintenance customers, it details the physical description, parts, software requirements, configuration, and procedures for mounting, disassembling, and reassembling both drives. It also includes instructions for using the cartridge tape and testing the tape drive. A key warning notes that unauthorized installation may invalidate the warranty.

The document was published in November 1992 by Digital Equipment Corporation.
