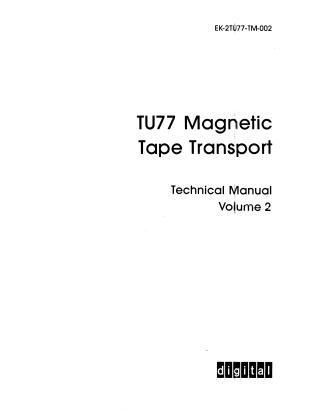

TU77 Magnetic Tape Transport Technical Manual Volume 2

This document is Volume 2 of the Technical Manual for the TU77 Magnetic Tape Transport, published by Digital Equipment Corporation.

It serves as a comprehensive guide covering the general description, installation, operation, theory of operation, and maintenance/troubleshooting of the TU77 magnetic tape transport.

Key aspects summarized in the manual include:

1. General Description: Introduces the TU77 as a 9-track magnetic tape transport capable of recording and reading data in NRZI (800 BPI) and PE (1600 BPI) formats at 125 inches per second. It details its interface with the Massbus via a TM03 tape formatter (distinguishing between "master" and "slave" units) and provides physical descriptions of its major subassemblies (base, card cage, power pack). Mechanical and electrical specifications are extensively listed.

2. Installation: Covers detailed site planning (space, power, environmental requirements), unpacking and inspection procedures, and mechanical/electrical installation steps for both single and multi-transport configurations. A significant section is dedicated to acceptance testing, including turn-on procedures, various tape loading/unloading sequences (autoload, manual, inhibited autoload), pneumatic system checks, and the use of TM03/TU77 diagnostics to verify proper installation and functionality.

3. Operation: Describes the TU77's control panel (buttons and indicators) and outlines various operating procedures such as power on/off, autoload/manual load selection, mid-reel loading, unloading, rewinding, and switching between on-line/off-line modes. Probable causes for load failures are also addressed.

4. Customer Care and Preventive Maintenance: Emphasizes customer responsibilities, proper magnetic tape care, and a detailed schedule for preventive maintenance, including daily and semiannual cleaning procedures for various transport components using specific cleaning kits and fluids.

5. Theory of Operation: Provides an in-depth technical explanation of how the TU77 functions at a circuit board assembly (PCBA) level. It breaks down the transport into seven main functional areas:

   • Capstan Servo Subsystem: Controls tape speed and direction.
   • Reel Servo Subsystems: Manages tape reel speed and tension using vacuum-formed tape loops.
   • Pneumatic Subsystem: Generates vacuum and pressure for tape handling and provides interlocks for safety.
   • Read/Write Subsystem: Processes and transfers data to/from the tape, including error detection and read-after-write verification.
   • Control Logic and Manual Controls: Manages transport operation based on host commands or manual input.
   • MTA Interface (M8940): Adapts signals between the TM03 formatter and the transport.
   • Power Supply and Distribution: Provides all necessary regulated DC power to the subsystems. Detailed explanations of cabling, interconnections, and test logic are also included.

6. Maintenance and Troubleshooting: Offers extensive procedures for functional alignments, parts replacement, and fault diagnosis. It covers the use of the M8940 MTA module and PCBA extenders for testing, power supply troubleshooting, load cycle troubleshooting (with flow diagrams for specific fault categories), pneumatic system troubleshooting, reel servo troubleshooting, and data path troubleshooting. Step-by-step instructions for the removal and replacement of numerous components and PCBAs are provided.

The document is heavily supported by figures, tables, and a comprehensive glossary, making it an essential technical resource for maintaining and understanding the TU77 Magnetic Tape Transport.
