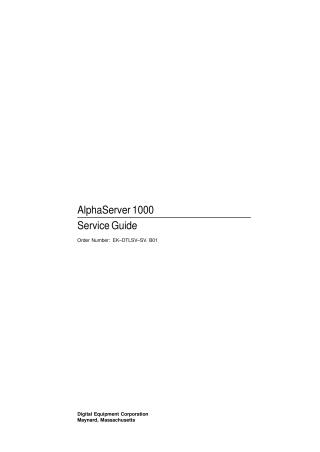

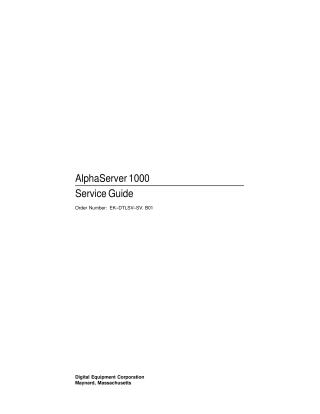

AlphaServer 1000 Service Guide

This "AlphaServer 1000 Service Guide" is a comprehensive technical manual for servicing AlphaServer 1000 systems, intended for Digital Equipment Corporation service personnel and qualified self-maintenance customers.

The guide covers the following key areas:

• Troubleshooting Strategy: Outlines a systematic approach to diagnosing system problems, categorizing them by power, console access, console-reported failures, boot failures, and operating system errors. It details various service tools and utilities, including error handling/logging mechanisms, ROM-Based Diagnostics (RBDs), loopback tests, firmware console commands, operating system exercisers (DEC VET), and crash dump analysis. It also lists available information services and training.
• Power-Up Diagnostics and Display: Provides in-depth information on interpreting error beep codes and power-up screen displays to identify issues. It offers specific troubleshooting steps for problems related to SROM memory, mass storage (including RAID controllers and LEDs), EISA bus, and PCI bus. The use of a "Fail-Safe Loader" for firmware recovery is also detailed.
• Running System Diagnostics: Explains how to execute various ROM-based diagnostics (RBDs) and operating system exercisers (DEC VET) to test core system components like CPU, memory, Ethernet, I/O buses, and SCSI subsystems. It includes a summary and detailed reference for console diagnostic commands such as test, memory, netew, network, kill, kill_diags, and show_status.
• Error Log Analysis: Describes how to interpret error logs reported by the operating system, detailing fault detection and reporting, machine check/interrupt types, and using utilities like DECevent for log translation.
• System Configuration and Setup: Provides instructions for verifying and configuring system hardware. This includes examining system configuration via SRM and ARC console interfaces, managing environment variables, configuring system bus options (CPU Daughter Board, Memory Modules, Motherboard, EISA/ISA, PCI, SCSI), power supply configurations, and console port settings.
• FRU Removal and Replacement: Offers step-by-step procedures for removing and replacing Field-Replaceable Units (FRUs) within the AlphaServer 1000's wide-tower enclosure. This section includes lists of FRUs and detailed instructions for components such as cables, CPU daughter board, fans, StorageWorks drives, memory modules, motherboard, NVRAM chips, OCP module, power supply, speaker, and removable media.
• Default Jumper Settings: An appendix detailing the location and default settings for jumpers on the motherboard and CPU daughter board.
