G803

This document provides technical information for a Digital Equipment Corporation (DEC) G803 Rectifying Slicer module, dating from 1966. It comprises two main sections:

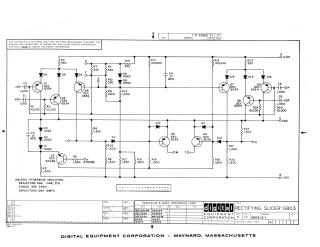

1. A detailed circuit schematic (G803-0-1): This diagram, provided for test and maintenance purposes, illustrates the proprietary internal circuitry, including transistors, diodes, resistors, and capacitors. It specifies power rails (+10V and -15V) and general component specifications (e.g., 1/4W 5% resistors, D664 diodes).
2. A 'FLIP CHIP MODULES TEST DATA' sheet: This section outlines the functional specifications and performance parameters for the G803. It lists minimum and maximum values for various electrical tests, covering operating voltages (e.g., D-E, D-F), input/output levels, strobe characteristics (current, disable, threshold), and output pulse width (specified as 6-10 µs).

The document also includes important technical information regarding proper soldering techniques and the necessity of grounding oscilloscopes to prevent damage.
