G706

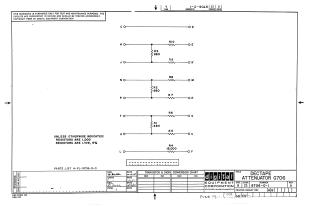

This document is a schematic diagram for the DECTAPE Attenuator G706, part number 6706-0-1, Revision A, copyrighted by Digital Equipment Corporation in 1967. It is provided for test and maintenance purposes and contains proprietary circuit information.

The schematic illustrates multiple resistor-based attenuator circuits. Unless otherwise indicated, resistors have a nominal value of 1,000 ohms, are 1/4 Watt, and have a 5% tolerance. Specific resistor values shown in the diagram include 680 ohms (for R1, R2, R3) and 15,000 ohms (for R4). The document also includes spaces for a parts list and a transistor & diode conversion chart.
