G703

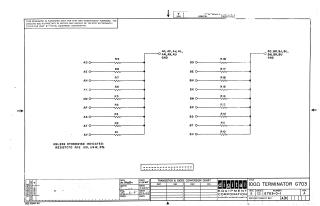

This document is a proprietary schematic for a Digital Equipment Corporation 100 Ohm Terminator, model G703, identified by part number G703-0-1, Revision A.

The circuit diagram illustrates two arrays of nine resistors each:

1. R1 through R9 connect individual input lines (AD, AE, AH, AK, AM, AP, AS, AT, AV) to a common ground point (AC, AF, AJ, AL, AN, AR, AU).
2. R10 through R18 connect individual input lines (BD, BE, BH, BK, BM, BP, BS, BT, BV) to a separate common ground point (BC, BF, BJ, BL, BN, BR, BU).

Unless otherwise specified, all resistors are 100 Ohms, 1/4 Watt, with 5% tolerance.

The schematic is copyrighted 1967 by Digital Equipment Corporation and is provided exclusively for test and maintenance purposes. It was drawn and checked in July 1967.
