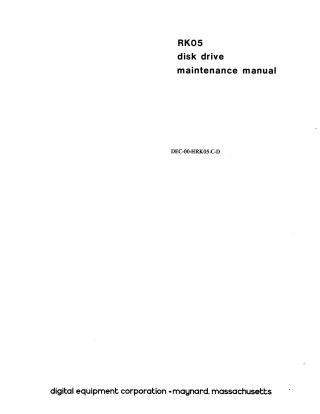

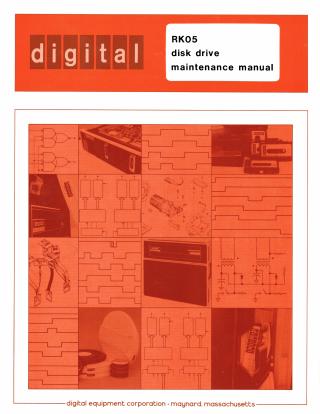

RK05 Disk Drive Maintenance Manual

This document is a maintenance manual for the RK05 Disk Drive, a self-contained, random-access data storage device designed for use in small and medium-sized computer systems by Digital Equipment Corporation.

The manual provides comprehensive information for understanding, installing, and servicing the RK05 drive. It covers:

• General Information: An introduction to the RK05, its technical specifications (including storage capacity of up to 25 million bits, two read/write heads, 1500 rpm spindle speed, and double-frequency NRZ recording), and a detailed description of its major assemblies and systems (e.g., spindle, linear positioner, cartridge handling, logic assembly, air system, power supply, and read/write heads).
• Installation: Detailed procedures for unpacking, mechanical installation, and proper handling practices for disk cartridges, alongside normal operating instructions.
• Interface: A technical breakdown of the electrical input and output interface lines that facilitate communication between the RK05 drive and its controller.
• Theory of Operation: Explanations of the drive's functional and logical operations, including power on/off sequences, disk addressing, head positioning (seek operations), read/write mechanisms, and various fault detection systems.
• Maintenance: Extensive sections on preventive maintenance (including scheduled procedures, cleaning, and filter replacement) and corrective maintenance (comprehensive troubleshooting guides for power supply, controls, mechanical, and electronic issues). This also includes detailed instructions for the removal, replacement, and precise alignment of various components like the linear positioner, read/write heads, spindle, blower motor, servo system adjustments, index/sector timing, and cartridge receiver.
• Appendices: Supplementary technical details, including a glossary of backplane connections, diagnostic and oscillating seek programs, information on an off-line tester, and a list of integrated circuits used in the drive.
