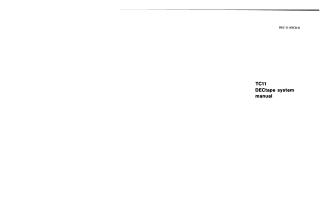

TC11 Mantenance Manual

This document is the TC11 DECtape System manual for the Digital Equipment Corporation (DEC) TC11 controller and DECtape magnetic tape.

It describes a high-speed magnetic tape handling system designed to interface with PDP-11 processors for storing and retrieving large amounts of digital information, used in applications like data acquisition, sorting, and duplication.

The system comprises three main components:

• TU56 Tape Transport: A dual-unit, bidirectional magnetic tape drive that reads/writes information at fixed positions on a 10-track magnetic tape (5 redundant channels). Operations are synchronized by a pre-recorded timing track, allowing for consistent performance despite speed variations. It operates at 5000 16-bit words per second.
• TC11 Controller: The interface between the tape transport and the PDP-11 Unibus, managing data and command transfers. One controller can manage up to eight tape units (four TU56 dual transports).
• DECtape Magnetic Tape: The storage medium, a Mylar tape formatted into fixed blocks (256 16-bit words per block) with mark and timing tracks for precise positioning and control. Each reel stores up to 147,968 16-bit words.

The manual details system installation, operation (on-line and off-line procedures, controls, and indicators), programming, and preventive maintenance. Programming information covers the use of five device registers (Status, Command, Word Count, Bus Address, Data) for software control, interrupt handling, and eight function commands (e.g., read, write, stop). It explains timing considerations and provides programming examples. Key technical aspects covered include the DECtape format (identical to PDP-9/10/15, and similar to PDP-8 except for word count), the Manchester recording method, and the bidirectional reading and writing mechanism, including handling the "obverse complement problem" for data integrity.
