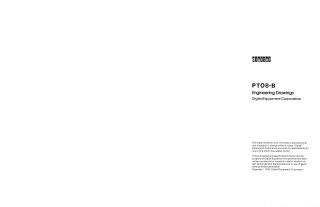

Pto8-B Engineering Drawings

This document contains the engineering drawings and technical specifications for the Digital Equipment Corporation PTO8-B Teletype Control unit. It includes:

• Master Drawing List: An index of associated drawings, including logic diagrams, module location types, printed circuit wiring, and engineering specifications.
• Logic Diagrams: Detailed circuit schematics for the PTO8 Teletype Control, showing signal flow, connections (e.g., IOT, CLK, BAC, etc.), and pin assignments for components.
• Module Location Layout: A visual guide for component placement and physical wiring configuration.
• Parts List: An itemized list of components required for the PTO8-A module, including power supplies, connectors, cable terminators, and signal cable components.

The documentation serves as a reference for the assembly and design of the PTO8-B system as of 1975.
