H724 Schematic

This document contains the technical schematics and circuit board diagrams for an H724 power supply unit. It provides comprehensive electrical engineering details, including:

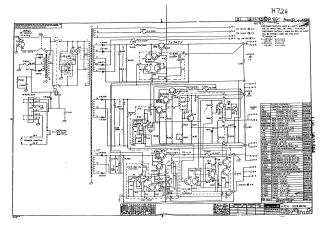

• System Schematic: A detailed circuit diagram illustrating the power supply's input (95-130VAC), transformer stages, thermal protection interlocks, and various output voltages (+15VDC, +5VDC, and -15VDC).
• Parts List: A tabulated inventory of components, including diodes, transistors (such as 2N3055), fuses, capacitors, and resistors, complete with their part numbers and specifications.
• Circuit Board Layouts: Detailed diagrams for specific control boards (labeled A1 and A2), showing the physical placement and connection points for individual electronic components on the circuit boards.
• Operational Specifications: Notes regarding input/output requirements, safety interlocks, and the thermal cut-out switch integrated into the system.
