Front Panel Cont Board

This document consists of the technical schematic diagrams and component layout for a "Front Panel Cont Board" manufactured by Digital Equipment Corporation.

The documents include:

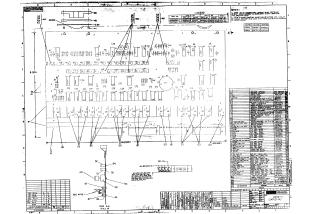

• Physical Layouts: Detailed diagrams showing the component side of the printed circuit board, including IC placements, switches, LED indicators, and physical mounting dimensions (View A-A).
• Logic Schematics: Circuit diagrams illustrating the logical interconnections of the board. These include logic gates, priority encoders, flip-flops, and the routing for various control signals (such as "MEM START," "LOAD ADDR," "RUN," and "EXAM"), as well as status indicator lights (D8 through D22).
• Parts Lists: Tabulated data listing the required components for the board, including reference designators, descriptions, and part numbers for resistors, integrated circuits (ICs), switches, and LEDs.
• Engineering Notes: Specifications regarding the assembly, such as specific notes for switch installation and light-emitting diode requirements.
