Power Supply 779

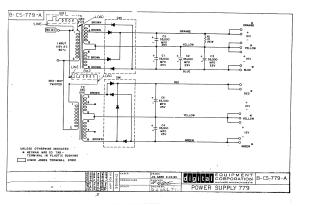

This document is an electrical schematic for the Digital Equipment Corporation Power Supply 779. It illustrates a dual-transformer design (utilizing DEC 1016 transformers) that converts 115V AC 60Hz input into multiple DC voltage outputs. The circuit employs several 35,000 MFD 25V capacitors for filtering and includes various color-coded output lines (Orange, Yellow, Blue, Red, and Green) to provide specific voltage levels. The diagram also specifies component details, such as the use of Heyman Manufacturing Co. tabs and Cinch Jones terminal strips.
