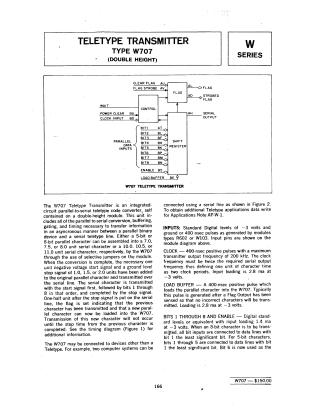

Teletype Transmitter

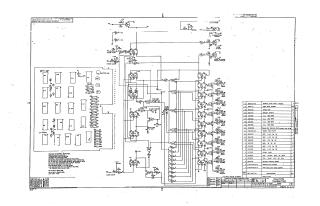

This document is a technical schematic diagram for a Teletype Transmitter circuit board. It illustrates the layout and interconnection of various electronic components, including integrated circuits (Motorola 800 series), transistors, diodes, resistors, and capacitors. The schematic specifically details logic sections such as a flag strobe, a print selector magnet driver, and a series of flip-flop modules. It also includes a comprehensive parts list, identifying specific DEC (Digital Equipment Corporation) components required for the assembly, along with design revision history and board specifications.
