Digit Stack Connector W014

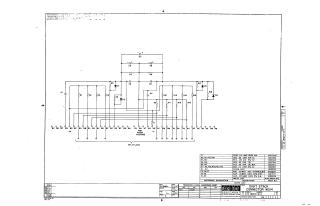

This document is a technical schematic for a "Digit Stack Connector" (Model W014), published by Digital Equipment Corporation in 1967. The schematic illustrates the circuitry for the connector, which includes various resistors, capacitors, and diodes (D1–D4). The page includes a comprehensive parts list detailing the specifications for the electrical components used, such as fuses, capacitors of varying capacitances, and resistors with specific wattage and tolerance ratings. The diagram also shows the layout of the split lugs and pin connections (labeled BV through AA) required for the assembly.
