Resistor Terminator M902-YA

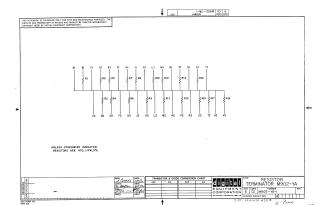

This document is an electrical schematic for a Digital Equipment Corporation (DEC) resistor terminator board, model M902-YA. The circuit consists of 18 resistors (R1 through R18) arranged in a specific terminal configuration connecting pins A1–T1 to C2–V2. It specifies that all resistors are 470-ohm, 1/4W, 5% tolerance components, intended for test and maintenance purposes.
