Option Board 1

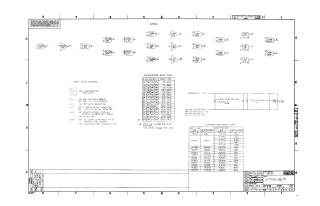

This document contains a comprehensive set of technical schematics and circuit board layouts for the Digital Equipment Corporation M8316 Option Board 1. The documentation includes:

• Logic Schematics: Detailed diagrams covering the serial line unit (SLU) baud rate selection, IOT decode/flags, crystal clock logic, EIA drivers and receivers, UART circuitry, programmer’s panel control, bus buffers, and multiplexers.
• Configuration Settings: A switch setting chart for the serial line unit, detailing baud rate configurations and control signals (such as real-time clock enable and test modes).
• Component & Manufacturing Data: A component substitution chart and board-level documentation including component side view diagrams and multilayer PCB layout patterns (Side 1 and Side 2) for the M8316 assembly.
