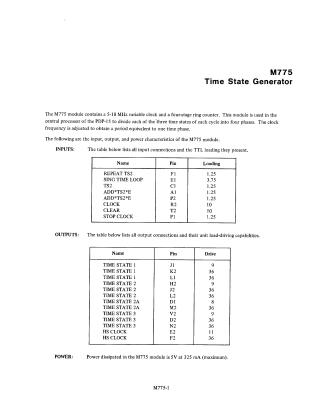

M775 Time State Generator

This document provides the technical specifications for the M775 Time State Generator module, which is utilized in the PDP-15 central processor to divide three time states into four phases using a 5-18 MHz variable clock and a four-stage ring counter. The document includes detailed tables outlining:

• Inputs: A list of input connection names, their associated pins, and TTL loading requirements.
• Outputs: A list of output connection names, their associated pins, and unit load-driving capabilities.
• Power: A maximum power dissipation specification of 5V at 325 mA.
