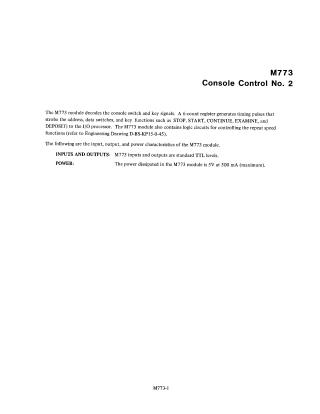

M773 Console Control No. 2

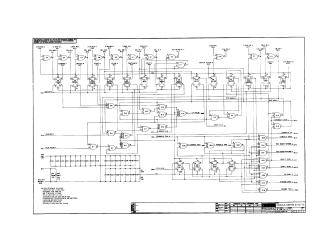

Summary: The M773 module is designed to decode signals from console switches and keys. It utilizes a 6-count register to generate timing pulses that communicate specific commands—such as STOP, START, CONTINUE, EXAMINE, and DEPOSIT—to the I/O processor. Additionally, the module houses logic circuits responsible for managing repeat speed functions. The module operates using standard TTL level inputs and outputs and has a maximum power dissipation of 5V at 500 mA.
