M770 Eae Control

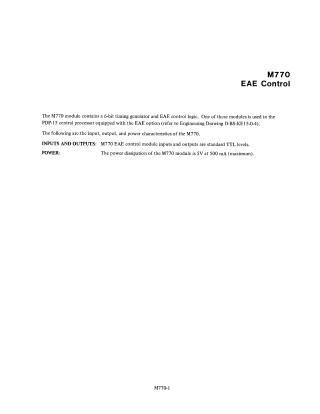

Summary: The M770 module is a component used in the PDP-15 central processor (specifically those featuring the EAE option) that contains a 6-bit timing generator and EAE control logic. The document specifies that the module operates using standard TTL level inputs and outputs, with a maximum power dissipation of 5V at 500 mA.
