M606 Pulse Generators

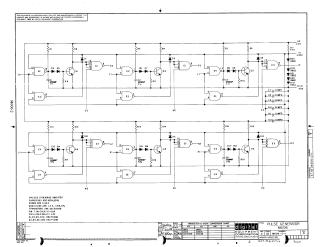

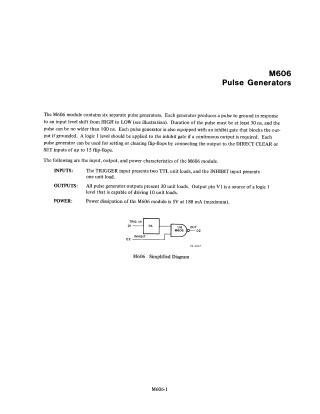

Summary The M606 module is a component containing six independent pulse generators. Each generator is triggered by a HIGH-to-LOW input transition, producing a pulse to ground with a duration between 30 ns and 100 ns. The module features an inhibit gate for each generator to block output when necessary and is capable of driving up to 15 flip-flops via its DIRECT CLEAR or SET inputs. The document also details the module's electrical characteristics, including TTL unit loads for inputs and outputs, as well as maximum power consumption (5V at 188 mA).
