J-K Flip-Flops

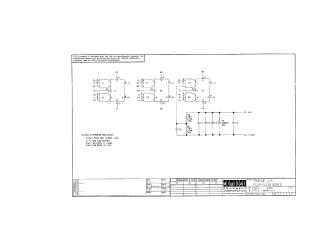

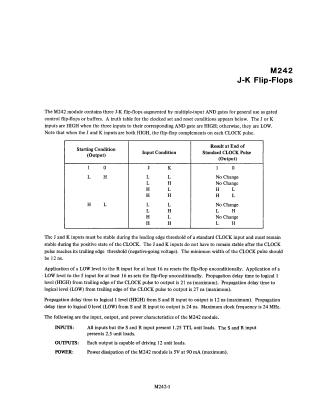

Summary The M242 module consists of three J-K flip-flops integrated with multiple-input AND gates, designed for use as buffers or gated control flip-flops. The document details the logic operations of the flip-flops, including a truth table for clocked conditions, timing requirements for J, K, and clock inputs, and conditions for unconditional set/reset via S and R inputs. Additionally, it provides technical specifications, including propagation delay times (up to 27 ns), a maximum clock frequency of 24 MHz, and the module's electrical characteristics regarding input loads, output drive capability, and power dissipation.
