M240 R-S Flip-Flops

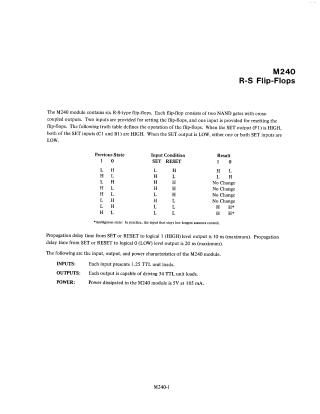

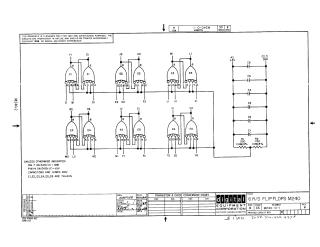

Summary The M240 module is a logic component featuring six R-S type flip-flops, each constructed from two cross-coupled NAND gates. The document provides a truth table detailing how various input combinations (SET and RESET) affect the output states, including an identified "ambiguous state." Additionally, it outlines performance specifications, including a maximum propagation delay of 10 ns for a HIGH output and 20 ns for a LOW output, alongside electrical characteristics regarding input/output unit loads and power requirements (5V at 185 mA).
