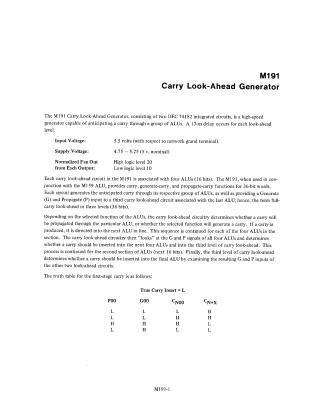

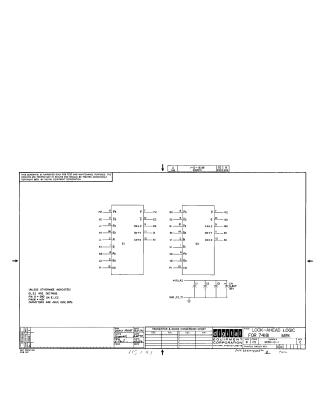

M191 Carry Look-Ahead Generator

The M191 Carry Look-Ahead Generator is a high-speed component consisting of two DEC 74182 integrated circuits designed to anticipate carries across a group of ALUs with a 13-ns delay per level.

Key details include:

• Functionality: It works in conjunction with M159 ALUs to provide carry, generate-carry, and propagate-carry functions. It supports 36-bit words through a three-level "full carry look-ahead" architecture.
• Operation: The circuitry monitors Generate (G) and Propagate (P) signals from ALUs to determine if a carry should be propagated through an ALU or generated by it. This logic is cascaded across sections of ALUs to determine carry insertion at various stages.
• Technical Specifications: It operates at 5 volts (nominal) and features specific fan-out characteristics (20 for high logic level, 10 for low).
• Documentation: The document provides truth tables for carry insertion, formal logic equations for look-ahead stages, and a diagram illustrating the 36-bit full-carry look-ahead configuration.
