Gate Module M160

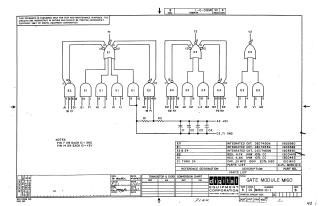

This document is a technical schematic for the Digital Equipment Corporation Gate Module M160. It details the circuit design, which utilizes integrated circuits (DEC7450N, DEC7453N, and DEC7460N) configured with resistors and capacitors. The schematic provides the internal logic gate connections, power supply requirements (+5V), and a parts list including resistor values (4.7K and 6.8K) and capacitor specifications (0.01MFD). The document is dated 1967 and includes notes on pin configurations for the integrated circuits.
