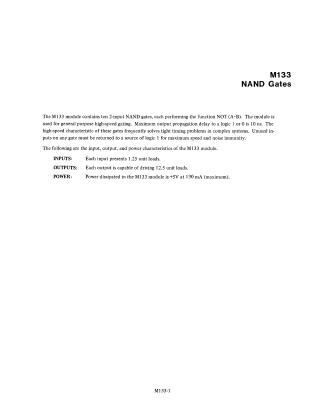

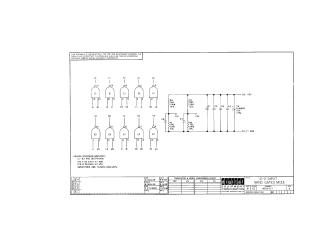

M133 Nand Gates

Summary The M133 module is a high-speed logic component containing ten 2-input NAND gates, designed for general-purpose gating tasks. It features a maximum propagation delay of 10 ns, making it suitable for addressing timing constraints in complex systems. Key specifications include an input load of 1.25 units per input, an output drive capability of 12.5 units, and a maximum power consumption of 130 mA at +5V. For optimal performance and noise immunity, any unused gate inputs should be tied to a logic 1 source.
