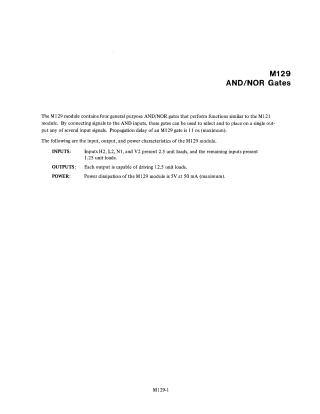

M129 And/Nor Gates

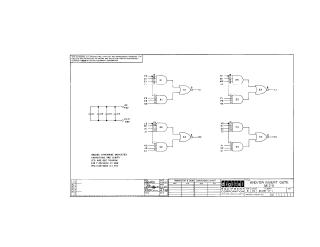

Summary: The M129 module features four general-purpose AND/NOR gates, similar in function to the M121 module, which allow for signal selection and routing. The module has a maximum propagation delay of 11 ns and includes the following technical specifications:

• Inputs: Specific inputs (H2, L2, N1, and V2) represent 2.5 unit loads, while all other inputs represent 1.25 unit loads.
• Outputs: Each output can drive up to 12.5 unit loads.
• Power: Maximum power dissipation is 5V at 50 mA.
