15 Loads M002

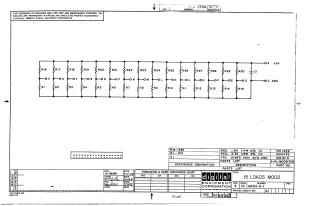

This document is a technical schematic for a Digital Equipment Corporation (DEC) circuit board designed for 15 loads. The circuit features a parallel configuration of 30 resistors (R1-R30) and a single .01µF capacitor, connected across a +5V power rail and a ground (GND) rail. The parts list specifies 1.8K and 3.3K resistors, alongside the capacitor, and provides the associated DEC part numbers for maintenance and manufacturing purposes. The schematic is dated 1968.
