And/Or Gates K Series

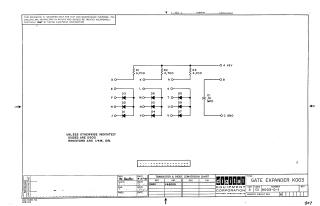

This document describes the technical specifications and application examples for the K Series logic modules: K003 (Expander), K113 (Inverting Gate), and K123 (English Gate). These components can be combined to perform various logical functions, including complex English expressions, by tying outputs together. The document provides:

• Module Specifications: A comparison table for the three modules, detailing their function, fanout, and connection characteristics.

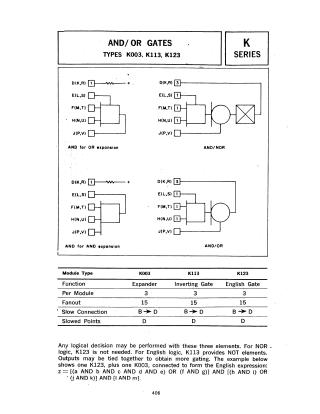

• Logic Implementation: Diagrams and explanations for constructing complex Boolean expressions using a combination of these gates.
• Flip-Flop Configurations: Examples of how to construct two different types of control flip-flops using combinations of the K003, K113, and K123 modules, along with their respective logic states for setting and resetting.
• Pricing: A reference list for the unit costs of the K003, K113, and K123 modules.
