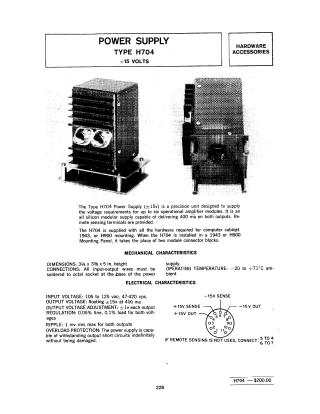

Power Supply Type H704

The Type H704 is a precision, all-silicon modular power supply designed to provide ±15V at 400 mA to up to six operational amplifier modules. It features remote sensing capabilities, is built to withstand indefinite short circuits, and includes all necessary hardware for mounting in 1943 or H900 computer cabinet panels. The unit operates within a temperature range of -20°C to +71°C and connects via an octal socket at the base.
