G829 Power Connector

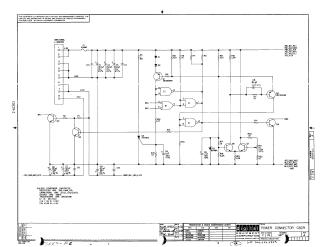

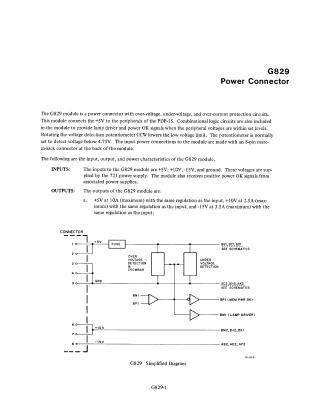

Summary The G829 module serves as a power connector for the PDP-15 computer's peripherals. It incorporates protection circuits for over-voltage, under-voltage, and over-current, and includes logic to generate "Power OK" and "Lamp Driver" signals when voltage levels are within specified ranges. The module accepts +5V, +10V, and -15V inputs (supplied by a 721 power supply) and provides output power at these levels with defined current maximums. It also features a user-adjustable potentiometer for setting the under-voltage detection limit.
