Dectape Attenuator G706

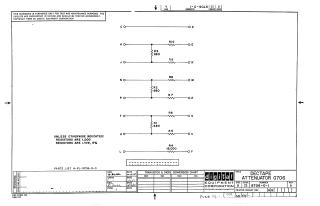

This document is a technical schematic diagram for the Digital Equipment Corporation (DEC) Dectape Attenuator, model G706. Created in 1967, the schematic details the resistive circuit layout of the unit. It specifies that unless otherwise indicated, resistors are 1,000 ohms, 1/4 watt, with a 5% tolerance. The diagram includes a signal path featuring various resistor configurations (R1 through R10) and notes the associated parts list (A-PL-G706-0-0).
