VAXft Systems Model 810 Installation Information

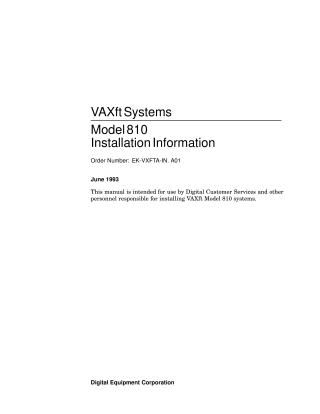

This document, "VAXft Systems Model 810 Installation Information" (June 1993), is a manual intended for Digital Customer Services and other personnel responsible for installing VAXft Model 810 systems.

It provides comprehensive instructions for the physical setup and initial verification of the system, covering:

• System Inspection and Unpacking: Procedures for receiving, inspecting, moving, unpacking options, and deskidding the cabinets.
• Cabinet Assembly and Cable Installation: Detailed steps for assembling the system cabinets and installing essential cabling, including entry system interface and power cabling, and expanded system interface (DSSI, Ethernet) and power cabling.
• Completing the System Installation: Guidance on power preparation procedures, turning the system power on and off, setting terminal baud rates, and running final system tests, including booting the VMS operating system and running the User Environment Test Package (UETP).
• Cabinet and Component Descriptions: An appendix providing detailed layouts and functions of the CPU and expansion cabinets, zone control panels, power modules, and power distribution boxes.

The manual focuses on the hardware installation and initial operational setup, preceding the full software application installation.
