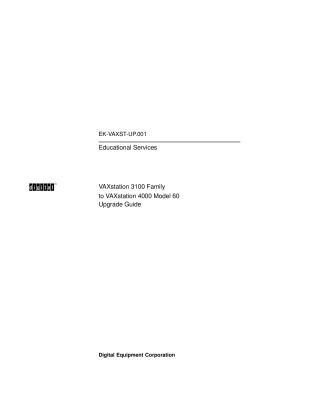

VAXstation 3100 Fam to VAXstation 4000 Model 60 Upgrade Gde

This document is an Upgrade Guide detailing the process of converting various Digital VAXstation 3100 series systems (Models 30, 38, 40, 48, and 76) to a VAXstation 4000 Model 60 workstation.

Intended for Digital Services or qualified self-maintenance personnel with experience in VAXstation hardware, the guide provides step-by-step instructions for:

• Preparation: Including critical pre-upgrade console commands, recording system configurations (like Ethernet hardware address and SCSI IDs), and mandatory software and user disk backups.
• Component Transfer: Safely removing internal components (such as RZ2x disk drives, mass storage controllers, graphics/scanline coprocessors, and memory modules) from the VAXstation 3100 units and installing them into the VAXstation 4000 Model 60. A key step is the exchange of Ethernet ROMs between the old and new systems.
• System Restoration: Reassembling the VAXstation 4000 Model 60, connecting peripherals, and powering it up.
• Verification: Running diagnostics and the "Show Config" command to ensure successful upgrade.
• Return Preparation: Instructions for restoring and packaging the original VAXstation 3100 system unit for shipment back to Digital, along with required return forms.
