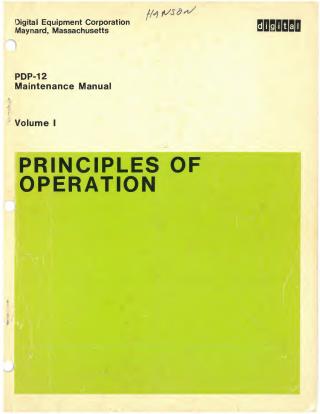

PDP-12 Maintenance Manual Volume I Principles of Operation

This document is the first volume of the PDP-12 Maintenance Manual, providing a comprehensive guide to the operational principles of the PDP-12 digital computer. It details the Central Processor (CP), outlining its two operating modes (8-Mode and LINC Mode), functional elements, data flow, timing mechanisms, and instruction sets. The manual thoroughly describes the core memory system, including its physical characteristics, addressing schemes, read/write operations, and memory extension controls.

It further covers the Input/Output (I/O) Bus, explaining both program-controlled and data break transfer methods and their associated logic. Dedicated sections provide in-depth information on standard peripherals such as the Teletype and the LINCtape Control System, as well as other LINC devices like A/D converters, display, and relays, detailing their operational logic, timing, and instructions. The document concludes with descriptions of various prewired options, including the Extended Arithmetic Element (EAE), power failure restart, time-sharing option, real-time clocks, and an incremental plotter, explaining their functionality and programming implications. The manual includes detailed logic descriptions, timing diagrams, and block schematics to aid in understanding the system's architecture and operation for maintenance purposes.
