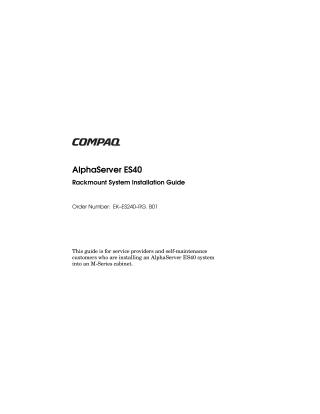

AlphaServer ES40 Rackmount System Installation Guide

This document is the Compaq AlphaServer ES40 Rackmount System Installation Guide (Order Number: EK-ES240-RG. B01), published in 1999.

Purpose: It provides step-by-step procedures for service providers and self-maintenance customers to physically install an AlphaServer ES40 system into a Compaq AlphaServer M-Series cabinet (specifically H9A10 Medium or H9A15 Tall cabinets).

Key Installation Steps Covered: The guide details the complete physical installation process, including:

• Unpacking the system and checking shipment contents.
• Attaching mounting brackets and slides to the system.
• Marking the cabinet installation area.
• Preparing and stabilizing the cabinet.
• Attaching slides to the cabinet and then installing the heavy system onto these slides.
• Installing the interlock system for enhanced cabinet stability.
• Installing the cable management arm and dressing the cables.
• Attaching the front bezel to complete the installation.

Important Warnings and Requirements:

• Weight: The AlphaServer ES40 system is very heavy; installation requires a material lift or other mechanical device and at least two people. Manual lifting is strictly prohibited.
• Cabinet Stability: The cabinet must be stabilized (using its built-in stabilizer bar or other means) before installing the system.
• Tools: Specific tools, including Phillips screwdrivers, hex sockets, Allen wrenches, and a material lift/table, are required.
• Radio Interference: The product is classified as a Class A device, meaning it may cause radio interference in domestic environments, and the user may be required to take corrective measures.
