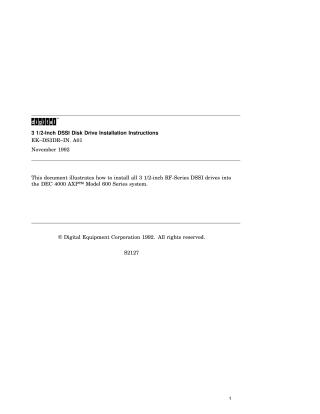

3 1/2-Inch DSSI Disk Drive Installation Instructions

This document provides installation instructions for 3 1/2-inch RF-Series DSSI disk drives into the DEC 4000 AXP Model 600 Series system.

It illustrates:

• The components of the RF-Series 3 1/2-Inch Storage Assembly, including the DSSI drive, bezel, data cables, DSSI terminator, and DSSI ID module.
• How to select and identify the Bus Node IDs for the fixed disks within the storage tray and on the system's front panel.
