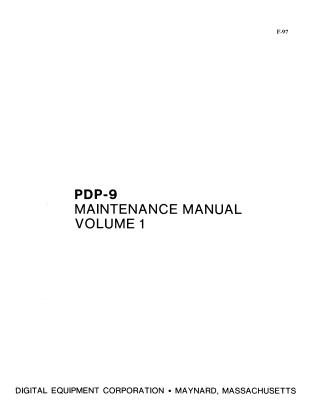

PDP-9 Maintenance Manual Volume 1

This document is a comprehensive maintenance manual for the Digital Equipment Corporation PDP-9 programmed data processor. It provides detailed information essential for the operation and maintenance of the PDP-9 computer system.

The manual begins with an introduction covering the system's scope, purpose, physical and functional descriptions, and available options, along with reference documents and terminology. It then delves into the operational aspects, describing system controls and indicators, programming considerations, and specific peripheral units like the operator console, paper tape reader/punch, and teletype unit.

A significant portion of the manual is dedicated to the PDP-9's system description, outlining its computer organization, central processor components (e.g., adder, accumulator, program counter), core memory system, and I/O control mechanisms. It thoroughly explains various instruction word formats, data formats (including sign, magnitude, and floating-point representations), and the intricacies of the control memory system. Specific instruction sets and their execution cycles (fetch, defer, execute, I/O, etc.) are detailed, providing a deep understanding of the computer's internal operations.

The maintenance section covers the general philosophy of maintenance, required tools and test equipment, module handling procedures, and the use of marginal check switches for system diagnosis. It distinguishes between preventive maintenance (routine checks, cleaning, lubrication) and corrective maintenance, which includes using diagnostic programs, troubleshooting various system components (memory, logic, circuits), and performing repairs or module replacements. Appendices provide lists of optional hardware and a basic instruction repertoire.
